3.97 Inch IPS LCD TFT Display Incell
Product Overview
High-quality 3.97-inch IPS LCD TFT display module with incell technology, designed for POS/PDA applications and other industrial uses requiring reliable visual interfaces.
Technical Specifications
| Parameter |
Specification |
| Application |
POS/PDA |
| Number of pixels |
480*800 pixels |
| Active Area |
51.84*86.4mm |
| Module Outline |
57.14*96.85*2.12mm |
| Aspect Ratio |
16:10 |
| Display Mode |
Normally Black |
| Viewing Angle (CR>10) |
80/80/80/80 (Typ) |
| Contrast Ratio |
1000MIN, 1200 (Typ) |
| NTSC |
70% (Typ) |
| LCM Brightness |
250cd/m² (Typ) 500cd/m² (Typ) |
| Interface |
MIPI |
| Operating Temperature |
-20~+70℃ |
| Storage Temperature |
-30~+80℃ |
480×800 LCD Touch Screen, MIPI Interface TFT Display, 3.97-Inch Medical TFT Display
3.97-Inch (4-Inch) 480×800 TFT LCD Touch Screen with MIPI Interface
The Jingtai Tech model JT-3.97IPSINCELL is a 3.97-inch TFT LCD module with a resolution of 480 × 800 pixels. This module integrates the ST7102 driver IC, supports an MIPI interface, and operates with a supply voltage (Vdd) ranging from 2.6V to 3.3V. It features a 12 o'clock viewing direction and a 16:10 aspect ratio.
The JT-3.97IPSINCELL is a portrait-mode TFT LCD module with a typical brightness of 250 nits. It is available with a Projected Capacitive Touch Screen. The operating temperature range for this module is -20℃ to +70℃, while its storage temperature range is -30℃ to +80℃.
This 3.97-inch TFT LCD module is widely used in various applications, including coffee machines, microwave ovens, scanners, home automation systems, access control systems, monitoring equipment, analyzers, security systems, and garden irrigation systems.

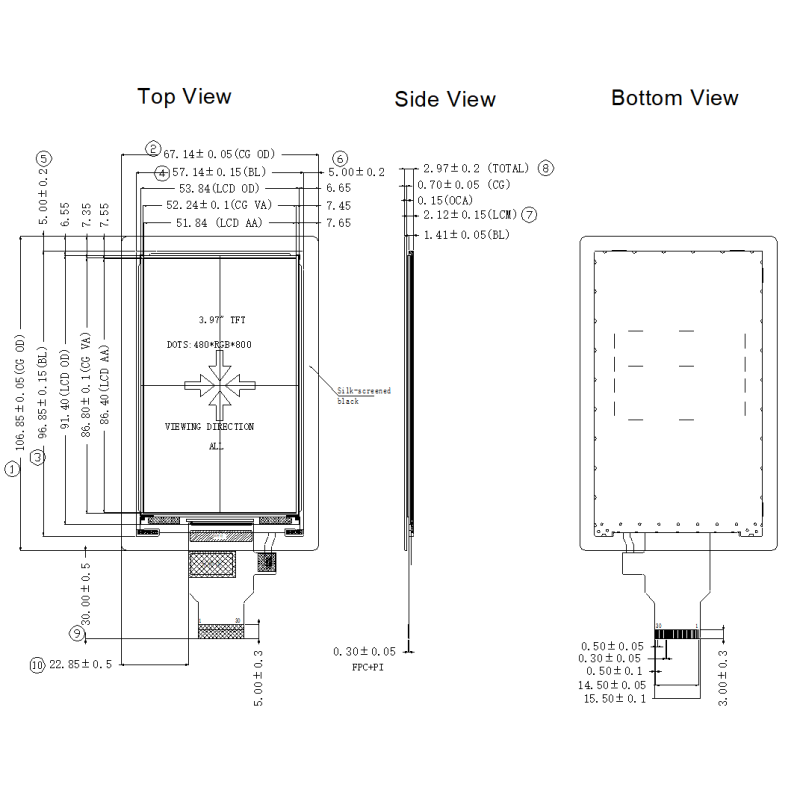

3.97 inch 480*800 IPS TFT Touch Display Module Drawing
Product Advantages
1. Excellent display performance, including color reproduction, brightness, viewing angle, and uniformity.
2. Wide operating temperature range of -20℃ to +70℃, suitable for demanding industrial applications.
3. Stable supply chain with commitment to continuous mass production for over 5 years, eliminating End-of-Life (EOL) concerns.
4. Flexible configuration options: available with or without a touch screen. We also support custom capacitive touch panel (CTP) designs.
5. Customizable FPC (Flexible Printed Circuit) for various interfaces, pin counts, and pin assignments.
6. Cost-effective solution within the LCD industry for comparable product categories.
7. Easy to install and maintain.
Applications
Widely used in coffee machines, microwave ovens, scanners, home automation systems, access control systems, monitoring equipment, analyzers, security systems, garden irrigation systems, and more.
